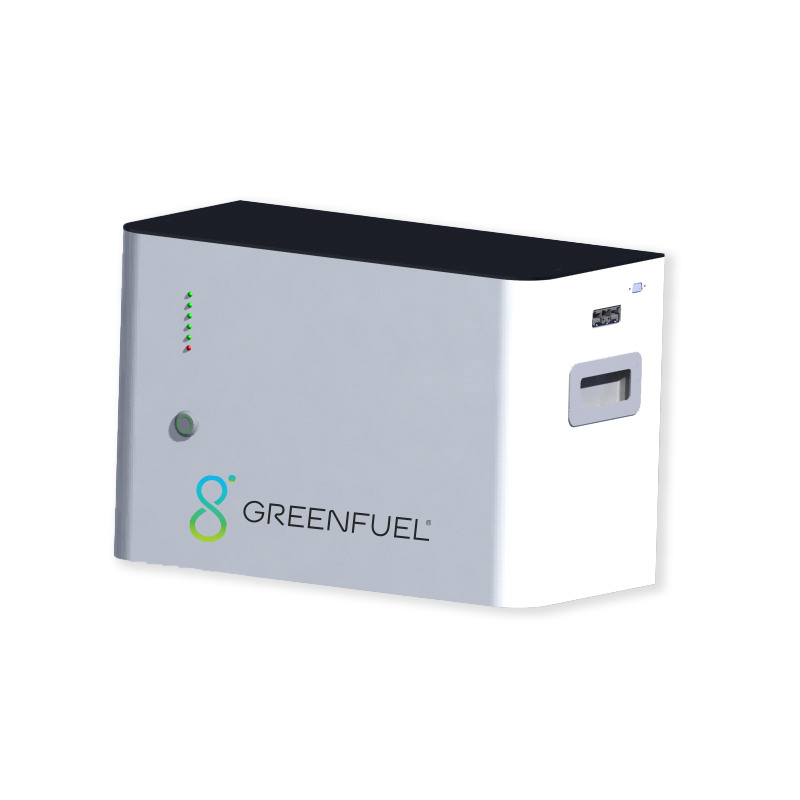

LFP2600ESS | Home inverter Battery
Experience the resilience of GREENFUEL batteries, uniquely crafted for two wheelers. Power up your ride with efficient and limitless performance.
Greenfuel, being an enabler in electric mobility proudly presents our newest offering in ESS segment in form of 25.6V battery pack. This pack is designed for the harsh and abusive conditions applicable to inverter or ESS application. With segment best safety features, energy density and state of the art thermal engineering, this battery pack offers the best performance and TCO. Equipped with advanced features like overload detection, redundant safety mechanisms, master/ slave adaptability and many more; the pack can be integrated in various architectures to ensure high efficiency. Needless to say, the battery pack is compliant to industry standards in terms of both safety and performance
- Long cycle life and LFP chemistry delivering higher cycle life.
- Flexibility in battery pack placement due to lower weight & dimensions.
- Capable to withstand side impact, drop and top loading
- High accuracy in voltage, current measurement
- Accuracy in SOC estimation > 98%
- Service friendly design, allows easy access to electronic and electro-mechanical components
- 100% Industrial qualified components
- Thermal management to ensure battery operation at controlled temperature
- 3+ years data and event storage locally at BMS level
- Environmental compliance as per ISO 16750
- UN38.3, UL16046, UL16893 certified
- Supports up to 10kW peak power
- <2500+ cycle life under normal operating conditions
- Short circuit protection capability up to 700A
- Rugged design: IP65.
- Minimal self-discharge of < 2% per month, longer shelf life
- Wide operating temperature range makes it suitable for different environments.
Battery Capacity | 2.5KWHr. |
Battery Type | Li-ion |
Chemistry | LFP |
Cell Package Type | Prismatic |
Capacity | 100 Ah |
Operation DOD range | 100 |
Nominal voltage | 25.6V |
Voltage Range | 25.6V to 29.2V |
Rated Charging Current (standard) | 0.5C |
Peak Charging Current | 1C |
Rated Discharge Current | 0.5C |
Peak Discharge Current | 1C for 15 Sec |
Communication Interface/Protocol | CAN |
Operating ambient temperature – Charging | 0 to 50°C (cell temperature) |
Operating ambient temperature – Discharging | 0 to 55°C (cell temperature) |
Storage Temperature for 6 months | 0 to 35 (50% SOC) |
Cooling | Convection using thermal materials |
Lifecycle @ Ambient 25°C | ~2500 |
Deterioration in capacity over cycles at 25°C for 100% DOD and 0.5C | 20% drop in initial capacity at the end of <2500 cycles. % drop in capacity at different part of the life shall be confirmed after simulation. |
Cycle definition | One complete charging and discharging considered to be a cycle for the above. |
Package Dimension (L x W x H) | 471 X 256 X 307mm |
IP Protection | 65 |
Weight | <22 Kg |
Specific energy | 116 Wh / Kg |
Electrical Protection | Fuse, BMS |
Standards | UN38.3, UL16046, IS 16893 Part 2& Part3 |
Protection | – Overvoltage, Under-voltage – Over-temperature (Charge and Discharge) – Under-temperature (Charge and Discharge) – Overcurrent (Charge and Discharge) – External Short circuit Detection |
Battery pack orientation | Up-right |
Self-discharge rate | < 3% SOC per month |
