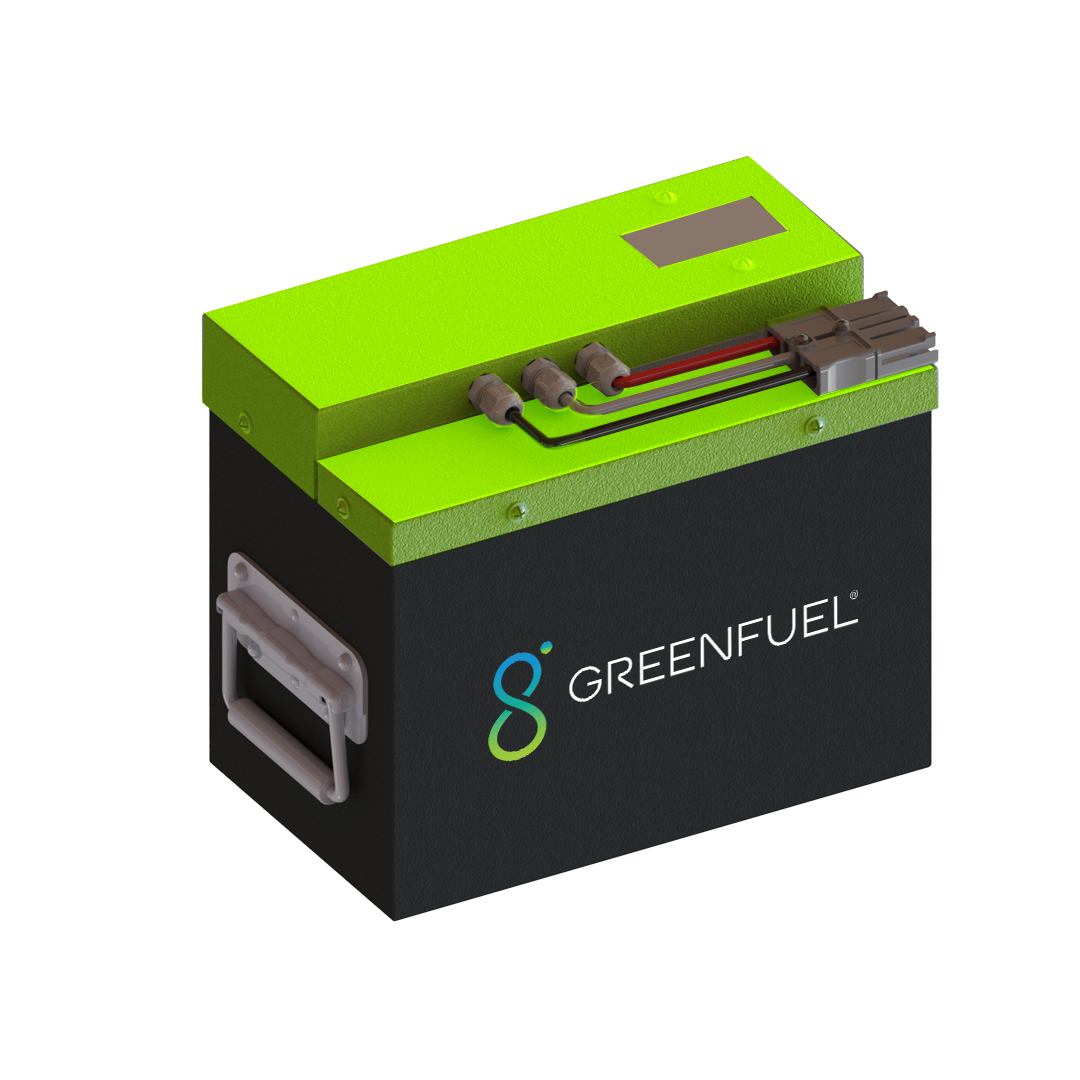

EFGBP00043 | 2 Wheeler Battery

Experience the resilience of GREENFUEL batteries, uniquely crafted for two wheelers. Power up your ride with efficient and limitless performance.

INTRODUCTION

Greenfuel, being an enabler in electric mobility proudly presents our newest offering in 2Wheelersegment in form of 2kWh SM Battery Pack with INT IOT -V2 battery pack. This pack is designed for the harsh and abusive conditions applicable to 2W. With segment best safety features, energy density and state of the art thermal engineering, this battery pack offers the best performance and TCO. Equipped with advanced features like crash detection, redundant safety mechanisms, heater control, master/ slave adaptability and many more; the pack can be integrated in various architectures to ensure high efficiency. Needless to say, the battery pack is compliant to industry standards in terms of both safety and performance. Designed and developed with singular focus of being the ‘workhorse’, this battery pack will drive all the way.

KEY FEATURE

  • Long cycle life and NMC chemistrydelivering high energy density
  • Flexibility in battery pack placement due to lower height: under the driver seat or under the cargo
  • Capable to withstand side impact, drop and top loading
  • High accuracy in voltage, current measurement
  • Accuracy in SOC estimation > 98%
  • Service friendly design, allows easy access to electronic and electro-mechanical components
  • 100% Automotive qualified components
  • Thermal management to ensure battery operation at controlled temperature
  • 3+ years data and event storage locally at BMS level
  • Environmental compliance as per ISO 16750
  • UN38.3,  &AIS-004 certified

PERFORMANCES

  • Supports up to 2kW peak power
  • 1000 cycle life under normal operating conditions
  • Short circuit protection capability
  • Rugged design: IP65
  • Minimal self-discharge of < 2% per month, longer shelf life
  • Wide operating temperature range makes it suitable for different terrains and environments.

KEY TECHNICAL SPECIFICATIONS





Battery Capacity 2Kwh
Battery Type Li-ion
Chemistry NMC
Cell Package Type Cylindrical
Capacity 40 Ah
Operation DOD range 83 + 2%
Nominal voltage 50.4 V
Voltage Range 43V – 58.38V
Rated Charging Current (standard) 0.5C
Peak Charging Current 1C
Rated Discharge Current 0.5C
Peak Discharge Current 2C for 10 Sec
Sleep Current < 5mA on HV side
Communication Interface/Protocol CAN2.0A
Operating ambient temperature – Charging 0 to 53°C (cell temperature)
Operating ambient temperature – Discharging 0 to 58°C (cell temperature)
Storage Temperature for 6 months 0 to 35 (50% SOC)
Cooling Convection using thermal materials
Lifecycle @ Ambient 25°C ~1000
Deterioration in capacity over cycles at 25°C for 100% DOD and 0.5C ~20% drop in initial capacity at the end of 1000 cycles. % drop in capacity at different part of the life shall be confirmed after simulation.
Cycle definition One complete charging and discharging considered to be a cycle for the above.
Package Dimension (L x W x H)  (185*155*325)
IP Protection 65
